Iowa fields look flat from the road. They aren’t. A field can drop three inches over sixty yards and you’d never see it standing at the edge. Those small dips decide where water sits, where it runs, and where your crop drowns after a hard rain. Drone LiDAR finds those dips before the rain does.
This piece walks through how the technology works on real cropland, what it can and can’t tell you, and when it makes sense to fly a field instead of pulling free state data off a map.
Why Flat Row-Crop Ground Hides Drainage Problems the Eye Can’t Catch
Walk a field after a storm and you’ll see the wet spots. What you won’t see is why they’re there. Most drainage trouble fields come from elevation changes too small to notice on foot, sometimes just two or three inches across a long stretch of ground.
A shallow pothole in the middle of a corn field can hold water for days while the ground around it drains fine. From a truck window, or even a drone photo, that low spot looks the same as the rest of the field. Water finds it anyway.
This is the gap LiDAR fills. It doesn’t take a picture. It measures height, point by point, closely enough to show the shape of the ground itself. Once you have that shape, the drainage pattern is no longer a guess.
How Drone LiDAR Sees the Bare Earth Under Corn Stubble and Crop Residue
LiDAR works by firing laser pulses at the ground and timing how long they take to bounce back. A drone flying over a field sends down thousands of these pulses per second.
Crop residue and low stubble don’t stop this process the way you’d expect. Each pulse can produce more than one return: one bounce off the top of the residue, another off the soil underneath, through small gaps. Software then sorts those returns and keeps only the ones that hit bare ground.
The result is a “bare-earth” model. The residue, weeds, and stubble get filtered out. What’s left is the actual dirt shape of the field, not the surface a camera would photograph. That’s the part that matters for water. Water follows dirt, not stubble.
Dense standing crops or heavy grass cover cut down on how many pulses reach the ground. That’s one reason timing a flight matters, more on that below.
From Point Cloud to Flow Map: How Elevation Data Becomes a Drainage Picture
Raw LiDAR data comes back as a “point cloud,” millions of individual height measurements scattered across the field. On its own, that’s just numbers. Turning it into something a farmer or contractor can read takes a few steps:
- Filter the points. Software strips out anything that isn’t bare ground, stalks, weeds, rocks, debris.
- Build the elevation model. The cleaned points get turned into a continuous surface, showing every rise and dip across the field.
- Trace flow direction. From that surface, software calculates which way water would move off each point of ground, following gravity downhill.
- Mark depression. Low spots that don’t drain to an edge, the potholes and closed basins, get flagged separately. These are where water sits instead of moving through.

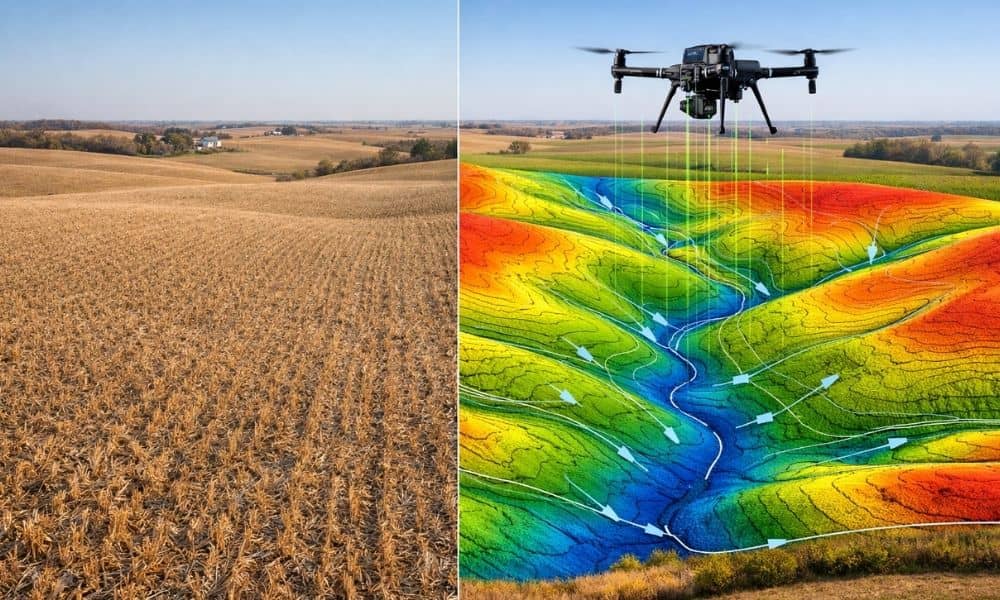

What comes out the other end is a map you can actually read: arrows showing flow paths, shaded areas showing standing water zones, and clear low points. That’s the drainage picture a tile design starts from.
Drone LiDAR vs. Statewide LiDAR Data: What Each One Is Good For
Iowa has had statewide LiDAR coverage for years. The state worked with the U.S. Geological Survey and university partners, including Iowa State’s GIS Facility and the University of Northern Iowa’s GeoTREE Center, to fly the state starting in the mid-2000s, with a more current refresh done since. It’s free to pull through Iowa DNR and the Iowa Geospatial Data Clearinghouse.
That statewide data is a solid starting point. It shows the general slope of a farm and points toward likely low spots long before you hire anyone. For a first look at a large tract, or for comparing a few fields before deciding where to focus, it’s often good enough.
Where it falls short is detail and timing. Statewide LiDAR was flown years ago, under whatever field conditions existed that day, at a resolution built for broad coverage, not one 80-acre field. A dedicated drone flight gets you current-season ground conditions, tighter point spacing, and data flown for your field alone.
If you’re deciding where to focus tile work, or you need elevation numbers a drainage contractor can build a design from, a fresh flight is worth the cost. If you’re just getting a general read on a farm before buying it, the free state data is a reasonable place to start.
Timing a Drainage-Mapping Flight Around the Growing Season
When you fly matters almost as much as how. A flight over a bare field after harvest, before snow sticks around, tends to give the cleanest bare-earth results. The residue is down, there’s no leaf canopy, and the ground is exposed.
Early spring, after snowmelt but before planting, works well too, for the same reason: bare or lightly covered soil.
Standing corn or soybeans block far more pulses from reaching the ground, so summer flights over a growing crop are a poor time to map soil elevation, even though they’re fine for other kinds of aerial work. Snow cover is its own problem, since LiDAR reads the top of the snow, not the ground underneath. Saturated soil right after a big rain can also result in low spots, which are, ironically, the exact areas you’re trying to map.
For most farms, a window in November or early December, or again in March before fieldwork starts, gives a surveyor the cleanest shot at accurate bare-earth data.
FAQ
Can drone LiDAR pick up drainage problems that a regular aerial or satellite photo would miss?
Yes. Photos show what the field looks like on the surface. LiDAR measures actual ground height, which is what shows the small low spots and flow paths you can’t see until water is already sitting there.
How small of an elevation difference can drone LiDAR realistically detect on flat farmland?
It depends on the sensor, the flight height, and how the data gets processed for a given field. Ask a surveyor what accuracy to expect for your specific project rather than assuming a number from general marketing specs.
Does residue or standing corn stubble block a LiDAR survey?
Some pulses get blocked, but not all of them. LiDAR sensors record multiple returns per pulse, so enough light reaches bare soil through gaps in residue. That’s the main reason it works over cropped fields where a camera alone would not.
Is a drainage pattern map from LiDAR enough to design new drain tile, or is more work needed?
The map is a diagnostic tool. It shows where water sits and where it flows. Turning that into an actual tile layout usually still takes a drainage contractor or engineer working from the elevation data along with soil type and outlet location.
Can drone LiDAR map a field that already has terraces, waterways, or existing tile risers?
Yes. Since LiDAR captures the full ground surface, existing terraces, grassed waterways, and visible risers or intakes show up in the elevation model right along with the surrounding ground.
