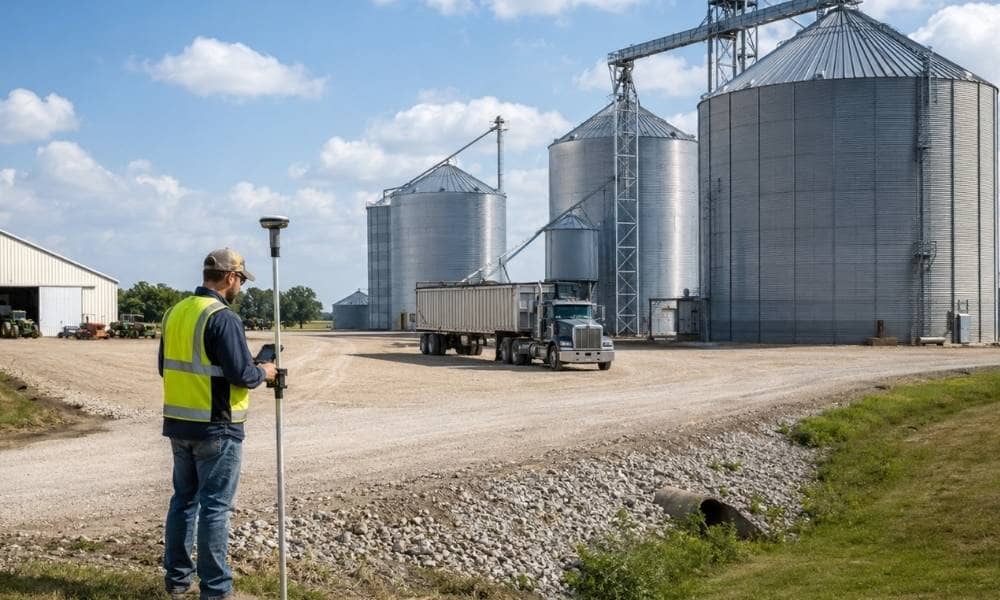

A grain bin site looks simple from the road. Flat ground. A driveway. A spot for the auger. But a working grain yard does a lot at once. Trucks need room to move. Legs and conveyors need to line up. Water needs a place to go. A topographic survey gives the design team real numbers on the ground as it sits today. That happens before anyone pours a footing or orders steel.
Map the Working Yard Before Choosing the Bin Pad
Picking a bin site is not just about finding open ground. The pad has to work with everything around it. A topographic survey records the ground and the visible features near the planned storage area. This includes farm lanes, existing buildings, loading docks, fences, and drainage paths.
That record shows how the new bin fits with the rest of the yard. Will a truck cross the same lane used for daily equipment traffic? Will the new pad crowd the space needed to load grain? Will it sit too close to a building that already limits access?
A flat, open patch of ground can still be a poor choice. It might break up traffic flow. It might crowd buildings that are already there. Grain-bin planning has to account for the whole working yard. It is not just about the footprint of the bin. A survey shows that full picture before the layout gets locked in.
Elevation Differences Matter Between the Bin, Leg, and Unloading Area
A grain operation is a system of connected parts. The bin, the leg or conveyor, the unloading pit, and any nearby equipment pads all work together. Their heights need to relate to each other in a way that makes sense. This matters for grain flow. It matters for drainage. It matters for equipment setup.
Say the unloading area sits lower than expected. Gravity flow may not work the way the design assumes. Say a conveyor run has to climb more than planned. The layout may need changes before work starts. A topographic survey records these height links as they exist today. That gives engineers a starting point for setting new grades.
This is not about contour lines in general. It is about real numbers. How does one part of the site sit compared to another? Without that, a design can look fine on paper. Then it can run into grade problems once work begins.
Grain Trucks Need More Space Than the Bin Footprint Suggests
A grain bin needs more room than its own footprint. Trucks that service it need space to pull in, unload, and turn around. Often, other farm traffic uses the same yard at the same time.
Surveyed site information shows the design team what space is actually there. This includes room around existing barns, roads, fences, utility poles, and other structures. That is what makes it possible to lay out a truck approach that fits the real site. The same goes for the unloading spot and the turnaround area. No one has to guess at open space.
Every farm layout is different. Truck sizes and setups vary by farm too. So there is no single number that works everywhere. What matters is real site data. That lets the design team plan truck movement based on the true size of the yard, not a guess.
Existing Farm Features Can Control Where Expansion Fits
A working farm rarely has empty land to build on. Existing bins, buildings, driveways, and farm lanes all take up space. So do utility poles, fences, ditches, and retaining walls. Most of these features cannot move. A topographic survey records them as part of the existing-conditions plan.
Seeing all of this on one plan helps the project team find where a new bin can go. The same goes for a leg or a piece of support equipment. A spot that looks open at first glance might sit too close to a buried utility line. It might sit too close to a ditch that cannot be filled in. A driveway might already control where truck traffic has to run.
This work is different from a boundary survey or a drainage study. The goal here is showing how the built features of the farm relate to each other. That way, the design team can place new construction without running into something that was already there.
Plan Today’s Grain Bin Without Blocking Tomorrow’s Expansion
Most farms do not stop at one bin. A single bin built today often turns into a second bin later. It might turn into a dryer, a new leg, or added storage down the road. The site work done for that first bin can make later stages easier, or harder. It depends on how much thought went into the layout from the start.
A topographic survey does not predict what a farm will need in five or ten years. What it does is give the design team real, documented site data. The team can use that data now to think through how today’s construction might relate to a later phase. That might mean leaving room next to the first bin. It might mean keeping a farm road wide enough for future truck traffic. It might mean avoiding a layout that would block the best spot for future bins.
Good site data now gives everyone a better starting point. Later, that makes it easier to build a coordinated expansion plan, instead of working around choices made without that information.
Frequently Asked Questions
Does a topographic survey tell you where a grain bin should be built?
No. It records existing site conditions and elevations. The final bin location depends on engineering, operational needs, applicable codes, equipment layout, and other project factors.
Should the survey include the area around the grain bin, not just the proposed pad?
Often, yes. The right survey limits depend on the project. Surrounding areas can matter when truck access, existing buildings, grain-handling equipment, or future work affect the design.
Can a topographic survey help when adding a new bin beside existing grain storage?
Yes. It can give measurements and site data that show how the new work relates to existing bins, structures, drives, and other surveyed features.
Why survey the unloading area before laying out a grain bin system?
Because the unloading area and grain-handling equipment often work as one connected system. Knowing their existing locations and height relationships gives the design team better information for the full layout.
Should future grain-bin expansion be included in the topographic survey limits?
If expansion is already being planned, talk with the surveyor and design team early. That talk can help decide if a larger survey area makes sense from the start.
